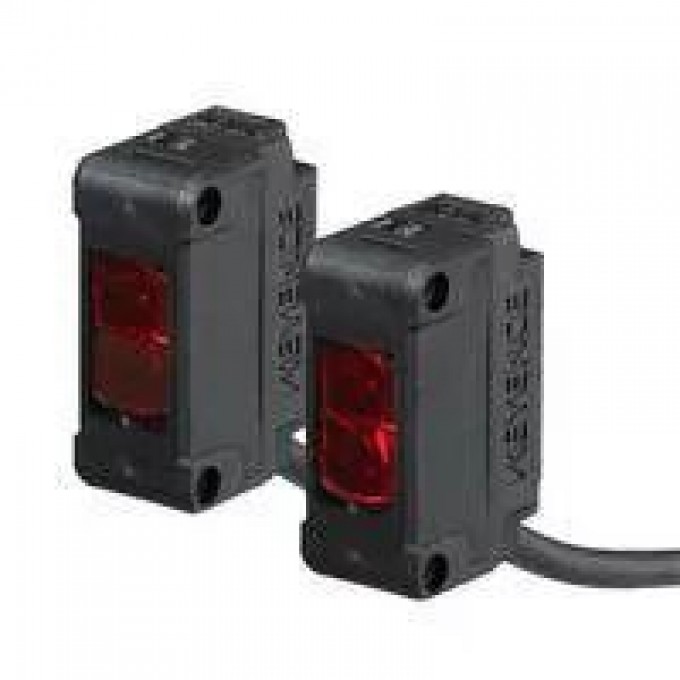

ХАРАКТЕРИСТИКИ
Weight
- Rectangular M12 pigtail quick disconnect model: Approx. 30 g
Рабочая температура
- 20 to +55 °C (No freezing)
Tightening torque
- Rectangular models (Mounting hole part): 0.5 N m max
Environmental resistance Enclosure rating
- IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
Ambient temperature
- 20 to +55 °C (No freezing)
Relative humidity
- 35 to 85 % RH (No condensation)
Момент затяжки
- Rectangular models (Mounting hole part): 0.5 N m max
Степень защиты
- IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
Относительная влажность
- 35 to 85 % RH (No condensation)
Материал корпуса
- Glass-fibre reinforced PBT
Control output
- Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max
Rating Power voltage
- 10 to 30 VDC, including Ripple (P-P) 10 %
Current consumption
- Transmitter: 20 mA or less, Receiver: 28 mA or less
Vibration resistance
- 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Напряжение питания
- 10 to 30 VDC, including Ripple (P-P) 10 %
Потребляемый ток
- Transmitter: 20 mA or less, Receiver: 28 mA or less
Ambient light
- Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max
Устойчивость к внешнему освещению
- Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max
Выход управления
- Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max
Устойчивость к вибрации
- 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Shock resistance
- 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Accessories
- Instruction manual
Устойчивость к ударам
- 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Тип датчика
- Фотоэлектрический
Комплектация
- Instruction manual
Protection circuit
- Reversed polarity, overcurrent protection, surge absorber
Защитная цепь
- Reversed polarity, overcurrent protection, surge absorber
Operation mode
- LIGHT-ON/DARK-ON (switch-selectable)
Источник света
- Красный LED
Режим работы
- LIGHT-ON/DARK-ON (switch-selectable)
Lens cover
- Polyarylate (PAR)
Материал крышки линзы
- Polyarylate (PAR)
Cable connection
- M12 pigtail connector *1
Detecting distance
- 20 m
Sensitivity adjustment
- 1-turn trimmer (230°)
Indicators (LED)
- Power (T): Orange LED Output (R): Orange LED Stable operation: Green LED Light receiving: Red LED
Interference suppression
- Up to 2 units (When polarization filters are attached)
Material Housing, M18 nut(threaded models only)
- Glass-fibre reinforced PBT
Trimmer
- Glass-fibre reinforced polyamide (PA)
Case connection
- Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR)
Cable (cable models only)
- Polyvinyl chloride (PVC)
Принцип действия
- Thrubeam Standard
Подключение
- M12 pigtail connector
Регулировка чувствительности
- 1-turn trimmer (230°)
Подавление помех
- Up to 2 units (When polarization filters are attached)
Материал триммера
- Glass-fibre reinforced polyamide (PA)
Индикация
- Power (T): Orange LED, Output (R): Orange LED, Stable operation: Green LED, Light receiving: Red LED
Расстояние срабатывания
- 20 м
Материал соединения корпуса
- Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR)
