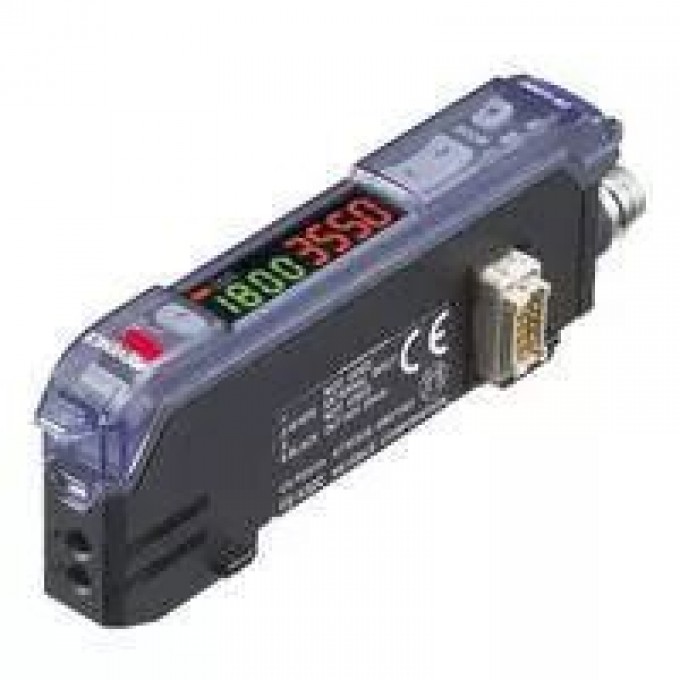

ХАРАКТЕРИСТИКИ
Size
- 30.3 mm (H) x 9.8 mm (W) x 71.8 mm (D)
Рабочая температура
- 10 to +55 °C (No freezing)*4
Type
- 1-output + 1-input with M8 connector
Ambient temperature
- 10 to +55 °C (No freezing)*4
Relative humidity
- 35 to 85 % RH (No condensation)
Тип
- 1-output + 1-input with M8 connector
Относительная влажность
- 35 to 85 % RH (No condensation)
Материал корпуса
- Polycarbonate
Control output
- PNP open-collector 24 V, 100 mA max.*1 (main unit only)/20 mA max. (when the expansion unit(s) is connected), Residual voltage: 1 V max
Response time
- 33 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO) /4 ms (ULTRA TURBO) /16 ms (MEGA TURBO)
Rating Power voltage
- 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Vibration resistance
- 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Управляющий выход
- PNP open-collector 24 V, 100 mA max.*1 (main unit only)/20 mA max. (when the expansion unit(s) is connected), Residual voltage: 1 V max
Время отклика
- 33 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO) /4 ms (ULTRA TURBO) /16 ms (MEGA TURBO)
Напряжение питания
- 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Виброустойчивость
- 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Устойчивость к внешнему освещению
- Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max
Габариты
- 30.3 mm (H) x 9.8 mm (W) x 71.8 mm (D)
Power consumption
- Normal: 750 mW max. (Using 24 V, 31 mA max., using 12 V, 40 mA max.)/ Power saving 580 mW max. (Using 24 V, 24 mA max., using 12 V, 28 mA max.)*3
Потребляемая мощность
- Normal: 750 mW max. (Using 24 V, 31 mA max., using 12 V, 40 mA max.)/ Power saving 580 mW max. (Using 24 V, 24 mA max., using 12 V, 28 mA max.)*3
Shock resistance
- 500 m/s2, 3 times in each of the X, Y, and Z directions
Ударопрочность
- 500 m/s2, 3 times in each of the X, Y, and Z directions
Environmental resistance Ambient light
- Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max
Main unit/Expansion unit
- Expansion unit
Case material
- Polycarbonate
Light source
- Red, 4-element LED (Wavelength: 640 nm)
Источник света
- Red, 4-element LED (Wavelength: 640 nm)
Индикация
- Operation indicator: Red LED/Dual digital monitor: Dual 7-segment display, Preset Value (4-digit green LED indicator) and Current Value (4-digit red LED indicator) illuminated together. Current Value range: 0 to 64,512, Excess gain: 0P to 999P, Hold function: Possible to display both peak and bottom hold values, Selectable from 5 variations Bar LED monitor: Excess gain displayed (85% to 115% in 7 steps), Scaling display
Основной/Расширительный блок
- Expansion unit
Timer function
- OFF-delay timer/ON-delay timer/One-shot timer/ON-delay timer + OFF-delay timer/ON-delay timer + One-shot timer, selectable Timer duration selectable: 0.1 ms to 9,999 ms, Maximum error against the setting value: ±10% max
Unit expansion
- Up to 16 expansion units can be connected (a total of 17 units). Note that the 2-output type should be counted as two units
Функция таймера
- OFF-delay timer/ON-delay timer/One-shot timer/ON-delay timer + OFF-delay timer/ON-delay timer + One-shot timer, selectable Timer duration selectable: 0.1 ms to 9,999 ms, Maximum error against the setting value: ±10% max
Output selection
- LIGHT-ON/DARK-ON (switch-selectable)
Detection mode
- Light intensity (area detection possible, automatic sensitivity-tracking function provided)
Выбор выхода
- LIGHT-ON/DARK-ON (switch-selectable)
Режим обнаружения
- Light intensity (area detection possible, automatic sensitivity-tracking function provided)
Расширение блоков
- Up to 16 expansion units can be connected (a total of 17 units). Note that the 2-output type should be counted as two units
Display indicator
- Operation indicator: Red LED/Dual digital monitor: Dual 7-segment display, Preset Value (4-digit green LED indicator) and Current Value (4-digit red LED indicator) illuminated together. Current Value range: 0 to 64,512, Excess gain: 0P to 999P, Hold function: Possible to display both peak and bottom hold values, Selectable from 5 variations Bar LED monitor: Excess gain displayed (85% to 115% in 7 steps), Scaling display
External inputy
- Input time: 2 ms (ON)/20 ms (OFF) min.*2
Number of interference prevention units Normal operation
- HIGHSPEED:0 FINE:4 TURBO/SUPER/ULTRA/MEGA:8?
Время внешнего входа
- 2 ms (ON)/20 ms (OFF) min.*2
Устойчивость к помехам (нормальная работа)
- HIGHSPEED:0 FINE:4 TURBO/SUPER/ULTRA/MEGA:8?
