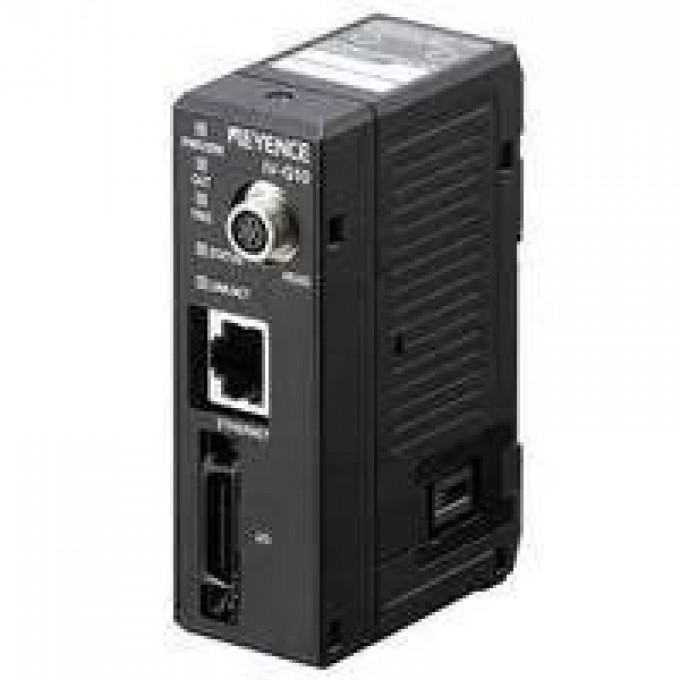

ХАРАКТЕРИСТИКИ
Environmental resistance Ambient temperature -
0 to +50 °C (No freezing)*11
Рабочая температура -
0 до +50 °C (без замерзания)*11
Relative humidity -
35 to 85 % RH (No condensation)
Material -
Main unit case: Polycarbonate
Относительная влажность -
35 до 85 % RH (без конденсации)
Материал корпуса -
Поликарбонат
Rating Power voltage -
24 VDC ±10 % (including ripple)
Current consumption -
0.8 A or less. 1.5 A or less when also using an expansion unit (IV-HG15). (The output load is excluded.)
Потребляемый ток -
0.8 А или менее. 1.5 А или менее при использовании с расширительным блоком (IV-HG15). (Нагрузка на выход исключена.)
Разъем -
RJ-45 8pin connector*10
Input type -
Non-voltage input/voltage input is switchable For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit) For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V)
Output type -
Open collector output NPN/PNP is switchable, N.O./N.C. is switchable For open collector NPN output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit), remaining voltage 1.5 V or lower For open collector PNP output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit), remaining voltage 2 V or lower
Connector -
RJ-45 8pin connector*10
Тип входа -
Безнапряжный вход/напряженный вход (переключаемый)
Тип выхода -
Выход с открытым коллектором NPN/PNP (переключаемый), N.O./N.C. (переключаемый)
Tools Type -
Shape Detection, Area*1, Colour Area*2, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment (1-Axis/2-Axis Adjustment), OCR*3
Number -
Detection tools: 16 tools, position adjustment tool: 1 tool*4
Switch settings (programs) -
32 programmes
Image history Numbers -
When using a colour type head: 100 images*5, when using a monochrome type head: 300 images*6*7
Condition -
NG only/All is selectable*7
Analysis information -
OFF/Statistics/Histograms/Matching rate list is switchable Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgement results list by tools Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs Matching rate list: Judgment results list by tools, matching rate list by tools, judgment bar list by tools*8
Other functions -
HDR, HighGain, Colour filters*2, Digital zoom (2x, 4x)*9, Brightness correction, Tilt correction, White balance*2, Mask function, Colour histogram, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator, Mutual interference prevention, Direct connection (2 units or more), Sensor date/time information addition, Scaling function, Failing sensor list, Failure hold
Indicators -
PWR/ERR, OUT, TRIG, STATUS, LINK/ACT
Inputs -
6 inputs (IN1 to IN6)
Function -
Enable by assigning the optional functions Assignable functions: Total judgement result, RUN, BUSY, Error, Position adjustment result, Judgement result of each tool, Result of the logical operation of each tool, Main unit/expansion unit logical output
Outputs -
8 outputs (OUT1 to OUT8)
Ethernet Standard -
100BASE-TX/10BASE-T*10
Network function -
FTP client, EtherNet/IPTM, PROFINET
Инструменты обнаружения -
Распознавание форм, Область*1, Цветная область*2, Пиксели края, Ширина/Высота, Диаметр, Наличие края, Шаг, Регулировка положения, Высокоскоростная регулировка положения (1-осевая/2-осевая), OCR*3
Количество инструментов -
16 инструментов обнаружения, 1 инструмент регулировки положения*4
Количество программ -
32 программы
Индикаторы -
PWR/ERR, OUT, TRIG, STATUS, LINK/ACT
Стандарт Ethernet -
100BASE-TX/10BASE-T*10
Сетевые функции -
FTP клиент, EtherNet/IPTM, PROFINET
История изображений (цветная головка) -
100 изображений*5
История изображений (монохромная головка) -
300 изображений*6*7
Условие анализа -
NG only/All is selectable*7
Информация для анализа -
OFF/Statistics/Histograms/Matching rate list is switchable Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgement results list by tools Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs Matching rate list: Judgment results list by tools, matching rate list by tools, judgment bar list by tools*8
Другие функции -
HDR, HighGain, Colour filters*2, Digital zoom (2x, 4x)*9, Brightness correction, Tilt correction, White balance*2, Mask function, Colour histogram, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator, Mutual interference prevention, Direct connection (2 units or more), Sensor date/time information addition, Scaling function, Failing sensor list, Failure hold
Входы -
6 входов (IN1 до IN6)
Функции входов -
Назначаемые функции: Общий результат оценки, RUN, BUSY, Ошибка, Результат регулировки положения, Результат оценки каждого инструмента, Результат логической операции каждого инструмента, Логический выход основного/расширительного блока
Выходы -
8 выходов (OUT1 до OUT8)
