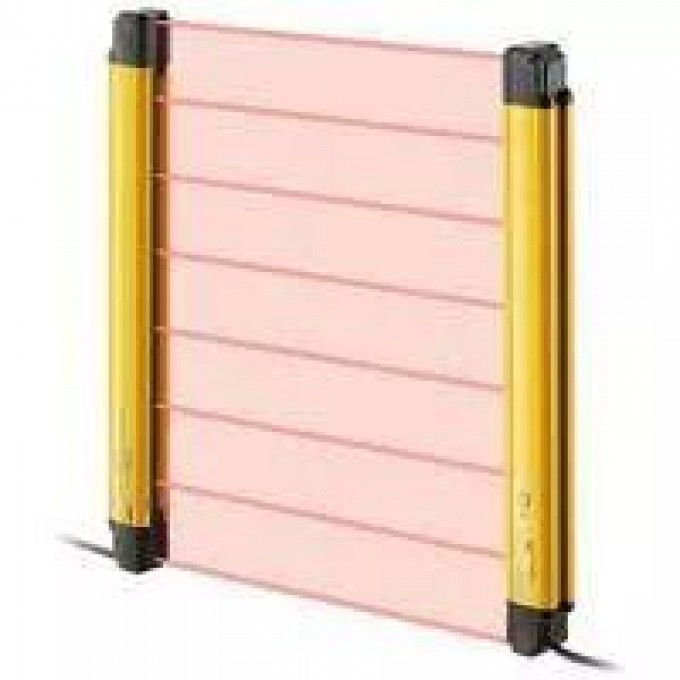

ХАРАКТЕРИСТИКИ
Рабочая температура
- 10 до +55 °C
Environmental resistance Enclosure rating
- IP65/IP67 (IEC60529)
Материал корпуса
- Алюминий, Нейлон (GF 30%), Поликарбонат, SUS304
Rating Power voltage
- 24 VDC ±20%, ripple (P-P) 10% or less, Class 2
Vibration resistance
- 10 to 55 Hz, Double amplitude 0.7 mm, 20 sweeps in each of the X, Y, and Z directions
Напряжение питания
- 24 VDC ±20%
Виброустойчивость
- 10 до 55 Гц, двойная амплитуда 0.7 мм
Ambient light
- Incandescent lamp: 3,000 lux or less, Sunlight: 20,000 lux or less
Overvoltage category
- II
Степень защиты корпуса
- IP65/IP67
Operating ambient temperature
- 10 to +55 °C (No freezing)
Рабочая влажность
- 15 до 85 % RH
Max. load current
- 500 mA*4
Leakage current
- Max. 200 µA
Max. capacitive load
- 2.2 µF
Load wiring resistance
- Max. 2.5 ?
Residual voltage (during ON)
- Max. 2.5 V (with a cable length of 5 m)
EMI
- EN55011 ClassA, FCC Part15B ClassA, ICES-003 ClassA
Safety
- IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE) IEC61496-2, EN61496-2, UL61496-2 (Type 4 AOPD) IEC61508, EN61508 (SIL3), IEC62061, EN62061 (SIL CL3) EN ISO13849-1:2015 (Category 4, PLe) UL508 UL1998
Storage temperature
- 25 to +60 °C (No freezing)
Operating relative humidity
- 15 to 85 % RH (No condensation)
Storage relative humidity
- 15 to 95 % RH
Shock resistance
- 100 m/s2 (Approx. 10 G), 16 ms pulse, 1,000 times in each of the X, Y, and Z directions
Температура хранения
- 25 до +60 °C
Ударопрочность
- 100 м/с2 (10 G), 16 мс импульс, 1000 раз
Supplemental output (Non-safety-related output) AUX
- Transistor outputs. (PNP or NPN is determined by the cable type) Load current: Max. 50 mA, Residual voltage: Max. 2.5 V (with a cable length of 5 m)
Muting lamp output
- Incandescent lamp (24 VDC, 1 to 5.5 W) LED lamp (load current: 10 to 230 mA) can be connected
Material Main unit case
- Aluminium
Время отклика OFF>ON
- 49.9 мс
Влажность хранения
- 15 до 95 % RH
Synchronisation between the transmitter and receiver
- Optical synchronisation or Wire synchronisation (Determined by wiring)
Синхронизация
- Оптическая или проводная
Protection circuit
- Reverse current protection, short-circuit protection for each output, surge protection for each output
Effective aperture angle
- Max. ±2.5° (When operating distance is 3 m or more)
Light source
- Infrared LED (870 nm)
Detection capability
- O45 mm
Weight Transmitter
- 660 g
Источник света
- Инфракрасный LED (870 нм)
Beam axis spacing/Lens diameter
- 40 mm / o5
Upper case/lower case
- Nylon (GF 30%)
Front cover
- Polycarbonate, SUS304
Detecting distance
- 0.2 to 15 m*1
Возможность обнаружения
- 45 мм
Detection mode
- Turns on when no interruptions are present in the detection zone
Режим обнаружения
- Включается при отсутствии прерываний в зоне обнаружения
Расстояние обнаружения
- 0.2 до 15 м
Защита цепи
- От обратного тока, короткого замыкания, перенапряжения
Optical synchronisation system (Channel A or B) ON>OFF
- 7.4
Light interference prevention function
- Prevents mutual interference in up to two GL-R systems. Optical synchronization: prevented by Channel A and B with setting switch Wire synchronization: prevented automatically
Control output (OSSD output) Output
- 2 transistor outputs. (PNP or NPN is determined by the cable type)
OFF state voltage
- Max. 2.0 V (with a cable length of 5 m)
When using an NPN output cable
- ON voltage: 0 to 3 V OFF voltage: Open or 10 V or more Up to the power voltage Short circuit current: Approx. 2.5 mA (Approx. 10 mA with EDM input only)
Дополнительный выход (AUX)
- Транзисторный выход (PNP или NPN)
Выход управления (OSSD)
- 2 транзисторных выхода (PNP или NPN)
Макс. ток нагрузки (OSSD)
- 500 мА
Макс. ток нагрузки (AUX)
- 50 мА
