ХАРАКТЕРИСТИКИ
Рабочая температура
- 0 до +50°C
Material
- Main unit case: PC / Power connector: PA, POM / Analogue output connector: PA, POM / I/O connector: PA / Head connector: Zinc + Ni plating, PA/Ethernet connector: Copper alloy + Ni plating / Rear heat sink: Aluminium / Main unit rear DIN rail fixing tab: POM / Nameplate: PC
Display range
- ±999.99 to ±999 mm (with 4 selectable steps)*1
Current consumption
- Max. 1.9 A or less (With main unit only: 0.8 A or less, With unit expansion: 1.9 A or less) (Excluding output load) *8
Диапазон отображения
- ±999.99 до ±999 мм (4 шага)
Напряжение питания
- 24 В DC ±10%
Потребляемый ток
- Макс. 1.9 А (основной блок: 0.8 А)
Output
- Open collector output, NPN/PNP switchable, N.O./N.C. switchable For open collector NPN output: Maximum rating of 26.4 V, 50 mA (20 mA when linked to an expansion unit), residual voltage of 1.5 V or less For open collector PNP output: Maximum rating of 26.4 V, 50 mA (20 mA when linked to an expansion unit), residual voltage of 2 V or less
Рабочая влажность
- 35 до 85% RH
Operating ambient humidity
- 35 to 85% RH (No condensation)
Output Number of outputs
- 10 (OUT1 to OUT10)
Connector
- RJ45 8-pin connector*6
Function
- Enable by assigning the optional functions Assignable functions: Total judgement result (All OK, Any OK/NG), run, busy, error, position adjustment result, tilt correction result, Monochromatic detection / Height detection tool result (OK/NG), Height / height difference / Max./Min. / calculation tool result (OK/NG/HIGH/LO), Alarm
Ethernet Standard
- 100BASE-TX/10BASE-T*6
Стандарт Ethernet
- 100BASE-TX/10BASE-T
Environmental resistance Operating ambient temperature
- 0 to +50°C (No freezing)
Минимальная единица отображения
- 10 мкм
Входы
- 8 (IN1-IN8), переключаемые не-напряжение/напряжение
Выходы
- 10 (OUT1-OUT10), открытый коллектор, NPN/PNP, N.O./N.C. переключаемые

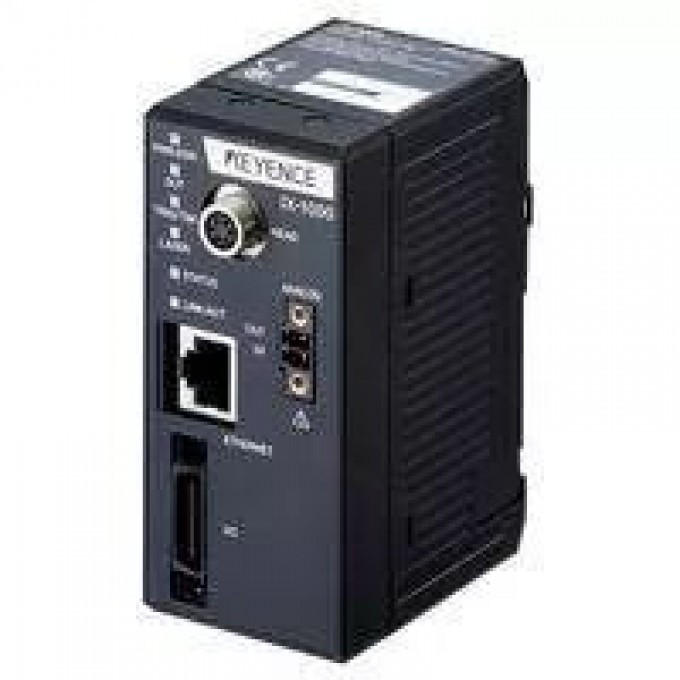

Тип блока
- Основной блок
Input
- Non-voltage input/voltage input is switchable For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit) For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V)
Main unit / expansion unit
- Main unit
Display Min. display unit
- 10 µm*1
Tools Scan mode
- Height, Height difference, Max./Min., Height difference calculation, Thickness calculation, Height detection, Monochromatic detection, Position adjustment (Max. number of settings) Detection: 16 tools, Position adjustment: 1 tool*2
Line mode
- Average count, Laser position adjustment, Timing input, Head tilt correction (fixed only), Ambient light removal for measurement, HOLD function, Alarm setting, Measurement method (Ave./Max./Min.)
Other functions Common
- ZERO/offset, Operating threshold adjustment, 2-point calibration, Measurement direction, Position correction NG measurement, Zero/offset recording, Capture mode (HDR) Sensor date/time Information addition, N.O./N.C. switching, I/O monitor, Automatic brightness adjustment, Lighting (ON/OFF), Total judgement conditions, NPN/PNP switching, Simultaneous main unit/expansion unit input, Light interference prevention, Security
Scan mode
- Measurement range, Measurement position (small/standard/large), Measurement mode, Measurement noise elimination, Imaging mode (high gain), Tilt correction (fixed or real-time correction), Glare removal, Trigger input (internal/external), Trigger interval, Trigger delay, Trigger error, Monochrome histogram, Fixed reference area, Mask outline, Rotation range
Input Number of inputs
- 8 (IN1 to IN8)
Analogue voltage output
- ±5 V, 1 to 5 V, 0 to 5 V, Output impedance: 100 ?*3
Analogue current output
- 4 to 20 mA, max. load resistance: 350 ?*3
Statistical information
- Scan mode: Measured value / Degree of similarity (Max., Min., Ave.), Processing time (Latest, Max., Min., Ave.), Count (Number of OKs / Number of NGs / Number of triggers) Line mode: Measured value / Degree of similarity (Max., Min., Ave.), Count (Number of OKs / Number of NGs / Number of triggers) *1*4
Detection history Saved history
- 100*5
Save conditions
- Selectable from NG only / All*5
Interface compatibility
- CC-Link / DeviceNetTM / EtherNet/IPTM / EtherCAT? / RS-232C / BCD / PROFINET / PROFIBUS / TCP/IP output*7
Number of connectible units
- Main units: 1, Expansion units: 1, Communication units (DL): 1
Ratings Power voltage
- 24 VDC ±10% (including ripple)
Аналоговый выход напряжения
- ±5 В, 1-5 В, 0-5 В
Аналоговый выход тока
- 4-20 мА
Количество инструментов обнаружения
- 16
Количество инструментов регулировки положения
- 1
Режимы сканирования
- Высота, разница высот, макс./мин., расчет толщины, обнаружение высоты, монохроматическое обнаружение, регулировка положения
Интерфейсы совместимости
- CC-Link, DeviceNet, EtherNet/IP, EtherCAT, RS-232C, BCD, PROFINET, PROFIBUS, TCP/IP
