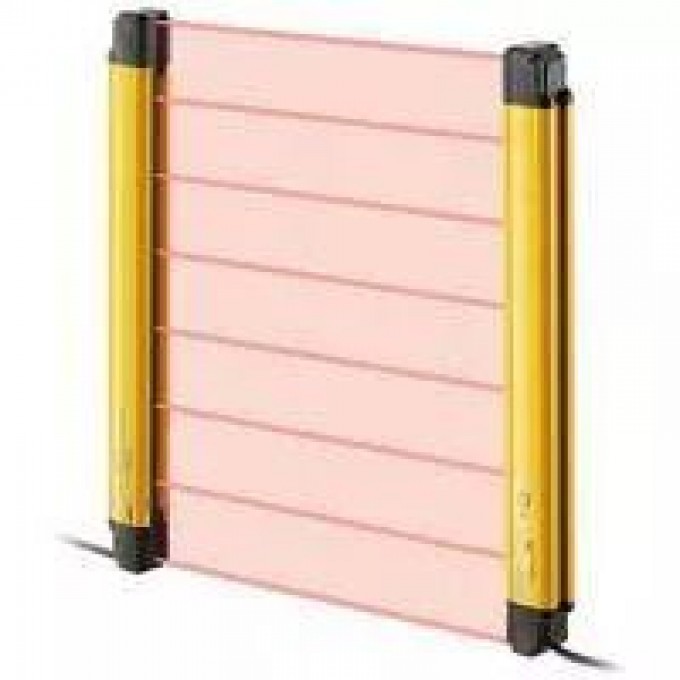

ХАРАКТЕРИСТИКИ
Environmental resistance Enclosure rating -
IP65/IP67 (IEC60529)
Степень защиты -
IP65/IP67 (IEC60529)
Материал корпуса -
Алюминий, нейлон (GF 30%), поликарбонат, SUS304
Rating Power voltage -
24 VDC ±20%, ripple (P-P) 10% or less, Class 2
Vibration resistance -
10 to 55 Hz, Double amplitude 0.7 mm, 20 sweeps in each of the X, Y, and Z directions
Виброустойчивость -
10 до 55 Гц, двойная амплитуда 0.7 мм
Ambient light -
Incandescent lamp: 3,000 lux or less, Sunlight: 20,000 lux or less
Overvoltage category -
II
Температура эксплуатации -
10 до +55 °C
Operating ambient temperature -
10 to +55 °C (No freezing)
Max. load current -
500 mA*4
Leakage current -
Max. 200 µA
Max. capacitive load -
2.2 µF
Load wiring resistance -
Max. 2.5 ?
Residual voltage (during ON) -
Max. 2.5 V (with a cable length of 5 m)
EMI -
EN55011 ClassA, FCC Part15B ClassA, ICES-003 ClassA
Safety -
IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE) IEC61496-2, EN61496-2, UL61496-2 (Type 4 AOPD) IEC61508, EN61508 (SIL3), IEC62061, EN62061 (SIL CL3) EN ISO13849-1:2015 (Category 4, PLe) UL508 UL1998
Storage temperature -
25 to +60 °C (No freezing)
Operating relative humidity -
15 to 85 % RH (No condensation)
Storage relative humidity -
15 to 95 % RH
Shock resistance -
100 m/s2 (Approx. 10 G), 16 ms pulse, 1,000 times in each of the X, Y, and Z directions
Температура хранения -
25 до +60 °C
Ударопрочность -
100 м/с2 (10 G), 16 мс импульс, 1000 раз
Supplemental output (Non-safety-related output) AUX -
Transistor outputs. (PNP or NPN is determined by the cable type) Load current: Max. 50 mA, Residual voltage: Max. 2.5 V (with a cable length of 5 m)
Muting lamp output -
Incandescent lamp (24 VDC, 1 to 5.5 W) LED lamp (load current: 10 to 230 mA) can be connected
Material Main unit case -
Aluminium
Synchronisation between the transmitter and receiver -
Optical synchronisation or Wire synchronisation (Determined by wiring)
Синхронизация -
Оптическая или проводная
Protection circuit -
Reverse current protection, short-circuit protection for each output, surge protection for each output
Effective aperture angle -
Max. ±2.5° (When operating distance is 3 m or more)
Light source -
Infrared LED (870 nm)
Detection capability -
O45 mm
Weight Transmitter -
1560 g
Источник света -
Инфракрасный LED (870 нм)
Beam axis spacing/Lens diameter -
40 mm / o5
Upper case/lower case -
Nylon (GF 30%)
Front cover -
Polycarbonate, SUS304
Относительная влажность хранения -
15 до 95 % RH
Detecting distance -
0.2 to 15 m*1
Макс. ток нагрузки -
500 мА
Detection mode -
Turns on when no interruptions are present in the detection zone
Режим обнаружения -
Включается при отсутствии прерываний в зоне обнаружения
Расстояние обнаружения -
0.2 до 15 м
Защита цепи -
Защита от обратного тока, короткого замыкания, перенапряжения
Optical synchronisation system (Channel A or B) ON>OFF -
10.2
Light interference prevention function -
Prevents mutual interference in up to two GL-R systems. Optical synchronization: prevented by Channel A and B with setting switch Wire synchronization: prevented automatically
Control output (OSSD output) Output -
2 transistor outputs. (PNP or NPN is determined by the cable type)
OFF state voltage -
Max. 2.0 V (with a cable length of 5 m)
When using an NPN output cable -
ON voltage: 0 to 3 V OFF voltage: Open or 10 V or more Up to the power voltage Short circuit current: Approx. 2.5 mA (Approx. 10 mA with EDM input only)
Дополнительный выход (AUX) -
Транзисторный выход (PNP или NPN), макс. 50 мА
Выход управления (OSSD) -
2 транзисторных выхода (PNP или NPN)
Способ обнаружения -
O45 мм
Относительная влажность эксплуатации -
15 до 85 % RH
