ХАРАКТЕРИСТИКИ
Weight -
Approx. 80 g (including connectors)
Вес -
Прибл. 80 г (включая разъемы)
Рабочая температура -
20 до +55 °C (без замерзания)
Ambient temperature -
20 to +55 °C (No freezing)
Relative humidity -
35 to 85 % RH (No condensation)
Material -
Main unit case and dust cover: polycarbonate, power supply connector: polyamide (plug), PBT (socket)
Относительная влажность -
35 до 85 % RH (без конденсации)
Материал корпуса -
Поликарбонат (основной корпус и пылезащитная крышка), полиамид (вилка разъема питания), PBT (розетка разъема питания)
Vibration resistance -
10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Виброустойчивость -
10 до 55 Гц, двойная амплитуда 1.5 мм, 2 часа по осям X, Y и Z
Power consumption -
1,500 mW or less (60 mA max. at 24 V)*8
Потребляемая мощность -
1,500 мВт или менее (макс. 60 мА при 24 В)
Тип кабеля -
STP или UTP Cat.3+ (10BASE-T), STP или UTP Cat.5+ (100BASE-TX)
Transmission media -
STP cable or Category 3 or higher UTP cable (10BASE-T)*1 STP cable or Category 5 or higher UTP cable (100BASE-TX)
Стандарты Ethernet -
IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3af (c, Class 3)
Скорость передачи данных -
10 Мбит/с (10BASE-T), 100 Мбит/с (100BASE-TX)
Power voltage -
24 VDC ±10 %, ripple (P-P) 10 % or less (with power supply connector) 48 VDC (Max. 57 VDC) (During PoE power receiving)
Accessories -
Instruction manual, power connector, 2 end units
Комплектация -
Инструкция по эксплуатации, разъем питания, 2 концевых блока
Индикаторы -
Link/activity (зеленый LED), статус модуля (двухцветный LED), статус сети (двухцветный LED), статус связи с сенсором (двухцветный LED)
Environmental resistance Pollution degree -
2
Indicator lamp -
Link/activity indicator (LINK/ACT): green LED, module status indicator (MS): 2-color (green and red) LED, network status indicator (NS): 2-color (green and red) LED, sensor communication indicator (N-bus): 2-color (green and red) LED
Name -

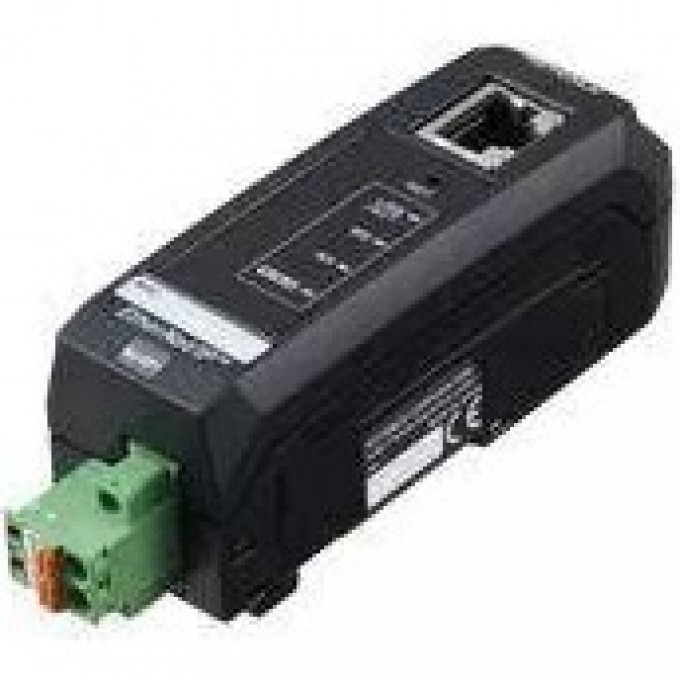

EtherNet/IPTM Compatible Network Unit
Ethernet Specifications Compliant standards -
IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3af (c, Class 3)
Transmission rate -
10 Mbps (10BASE-T), 100 Mbps (100BASE-TX)
Ethernet Maximum cable length -
100 m (distance between the unit and Ethernet switch)
EtherNet Max. number of connection stages -
4 (10BASE-T) 2 (100BASE-TX)*2
EtherNet/IP™ Compliant functions -
Cyclic communication Compatible with UCMM and Class 3 messaging (Explicit messaging)
Number of connections -
64
RPI (Transmission cycle) -
0.5 to 10,000 ms (in units of 0.5 ms)
Tolerable communication bandwidth for cyclic communication -
6,000 pps
Message communication -
Supports UCMM, Class 3
Conformance test -
Compatible with Version A7
Sensor connection Connectable sensors -
Sensor amplifi ers with N-bus support*3
Number of connectable units -
Up to 16 units*4
Power supply -
Power is supplied from the unit via a sensor amplifi er connection connector
Allowable passing current -
Total 1,200 mA or less*5
Power during PoE power receiving -
Supply voltage: 24 V ±10 %, supply current: 360 mA or less*6*7
Тип модуля -
Сетевой модуль, совместимый с EtherNet/IP™
Максимальная длина кабеля Ethernet -
100 м (между модулем и Ethernet-коммутатором)
Максимальное количество каскадов Ethernet -
4 (10BASE-T), 2 (100BASE-TX)
Функции EtherNet/IP™ -
Циклическая связь, совместимость с UCMM и Class 3 messaging (Explicit messaging)
Количество подключений -
64
RPI (Цикл передачи) -
0.5 до 10,000 мс (с шагом 0.5 мс)
Допустимая полоса пропускания для циклической связи -
6,000 pps
Совместимость с сенсорами -
Усилители сенсоров с поддержкой N-bus
Количество подключаемых устройств -
До 16 единиц
Питание -
От устройства через разъем подключения сенсорного усилителя
Допустимый проходящий ток -
Всего 1,200 мА или менее
Питание при получении PoE -
Напряжение: 24 В ±10 %, ток: 360 мА или менее (при получении PoE)
